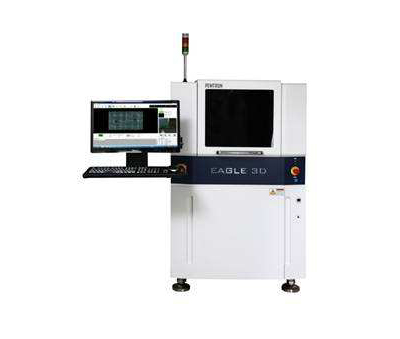

Product model: EAGLE8800 Benchuang 3D online AOI

Brand: Benchuang/PEMTRN

Origin: South Korea

EAGLE8800 Benchuang 3D online AOI performance characteristics description:

The system's 2D and 3D full inspection of PCBs ensures completely shadow-free optical inspection and low false alarm rate, while maintaining highly flexible system functions.

EAGLE8800 Benchuang 3D online AOI shadow-free projection camera

8 projected lights + 3 layers of 2D light sources

2D and 3D simultaneous detection algorithms, telecentric lenses provide high-precision detection, high-configuration CPU to ensure image processing, simple and clear user interface

Standard component library management system

Offline real-time debugging system (optional)

High speed detection technology

EAGLE8800 Benchuang 3D online AOI high-speed option uses an advanced, powerful network processor, controller version and independently developed 9MP15um180ps telecentric lens camera. It can detect 40. 5cm sg.per sec

High component detection technology

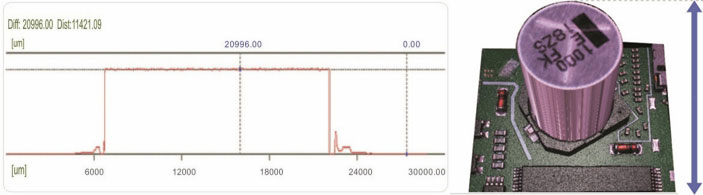

EAGLE8800 Benchuang 3D online AOI optional new 10-direction 3D projection technology can provide industry-leading all-round 3D inspection of 27mm component height

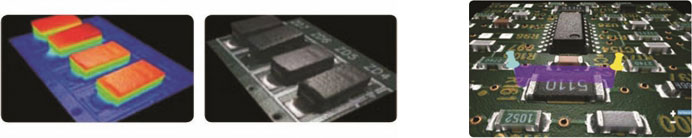

Benchuang 3D online AOI shadow-free 3D technology completely eliminates the shadows produced by high-density components and high-density components on the PCB

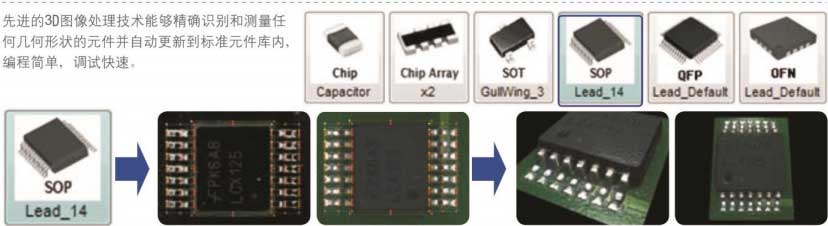

Optical font verification uses the principles of optical color extraction and template comparison to identify the original Part Name. OCR fonts can be added and modified to optimize Part Name detection spare parts and better identify fonts.

3D Solder Height Measurement Measurement

Utilizing our advanced 3O technology, EAGLE8800 Benchuang 3D online AOI can detect areas that traditional 2DAOI cannot reach. Test items that increase solder height, volume and component coplanarity greatly improve the detection capabilities of defective products.

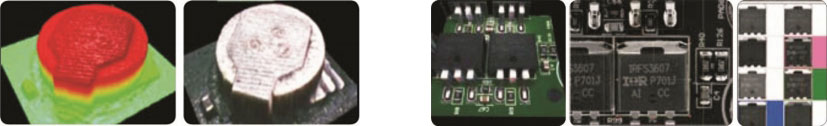

3D pin inspection

The EAGLE8800 Benchuang 3D online AOI detection principle can detect the solder height and volume of the pins and improve the quality and true color 3D images.

2DRGB algorithm

The RCB color distinction makes it easier for the operator to distinguish defects such as empty welding and short warping.
