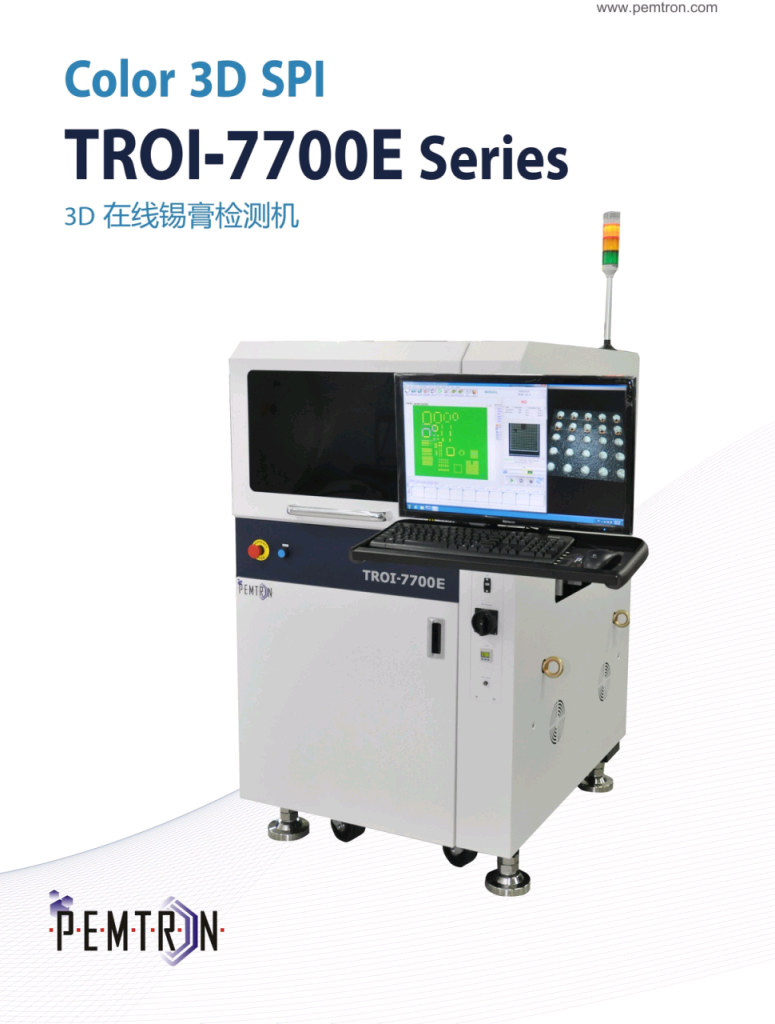

3D  SPI online solder paste inspection machine TROI-7700E

Technology and features

Dual 3D light source

The perfect combination of 2D and 3D effectively eliminates shadow images and provides high-quality 3D images with a high-performance camera to ensure high accuracy and high speed of testing.

64-bit Win 7 system

High-speed, high-stability computer systems are configured to meet increasingly intensive product designs.

Simple and clear user interface

The self-developed gerber editor is simple to operate and easy to program. The same interface can display all commonly used functions, avoiding the trouble of switching back and forth between multiple interfaces. The simple and clear interface can be suitable for operators of any level.

True color 3D stereoscopic images

The usual SPI can only calculate the height of the part above the silk screen, but Pemtron uses its Color XY technology to easily distinguish the copper foil and accurately find the collar reference plane. In addition, it can display true-color 3D images rotated at any angle, making it easier for users to see clear and vivid solder paste images, thus avoiding the trouble of operators repeatedly confirming the actual object under the microscope.

Technical Parameters:
