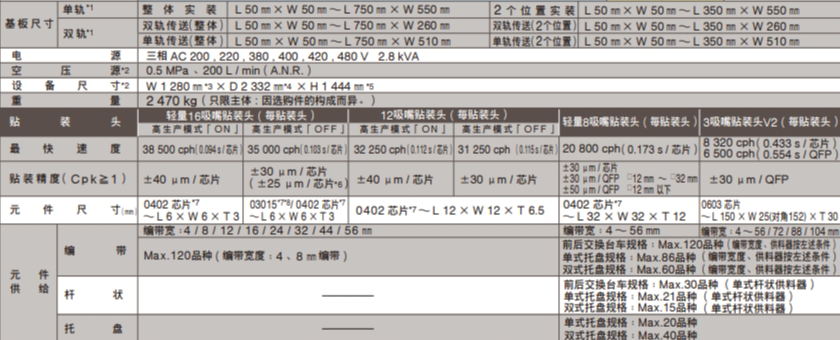

Panasonic placement machine NM-EJM7D product parameters

Model name: NPM-W2

Adapted placement head:

Front placement head: lightweight 16-nozzle placement head, 12-nozzle placement head, lightweight 8-nozzle placement head, 3-nozzle placement head V2

Rear placement head: lightweight 16-nozzle placement head, 12-nozzle placement head, lightweight 8-nozzle placement head, 3-nozzle placement head V2

Panasonic placement machine NM-EJM7D product features

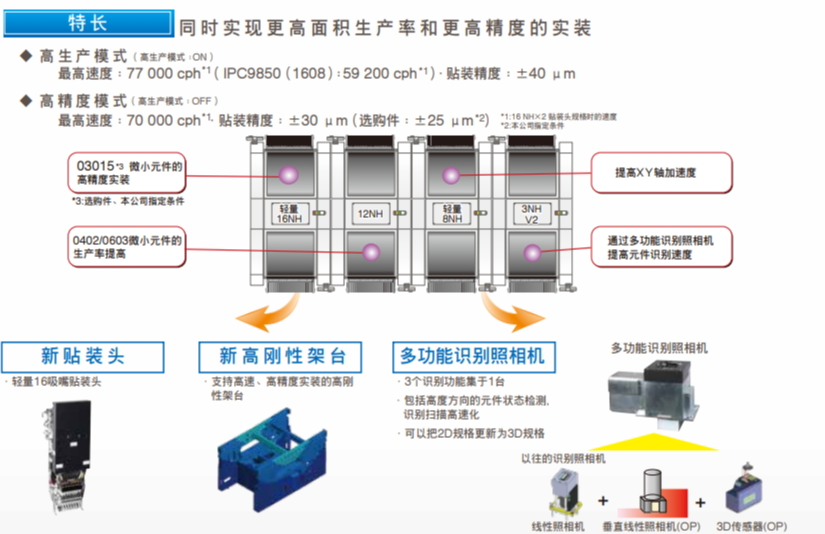

1. Mounting & inspection is a coherent system to achieve high efficiency and high quality production: according to your installation requirements, you can choose high production mode or high precision mode

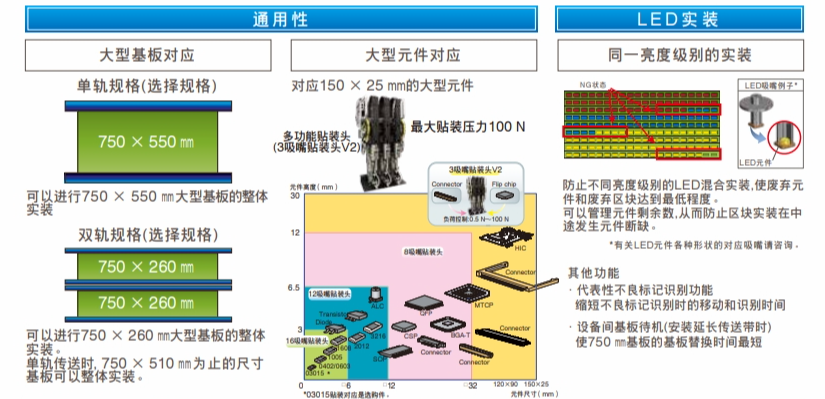

2. Can cope with large substrates and large components: Can cope with large substrates of 750 × 550 mm, and the component range has also been expanded to L 150 × W 25 × T 30 mm

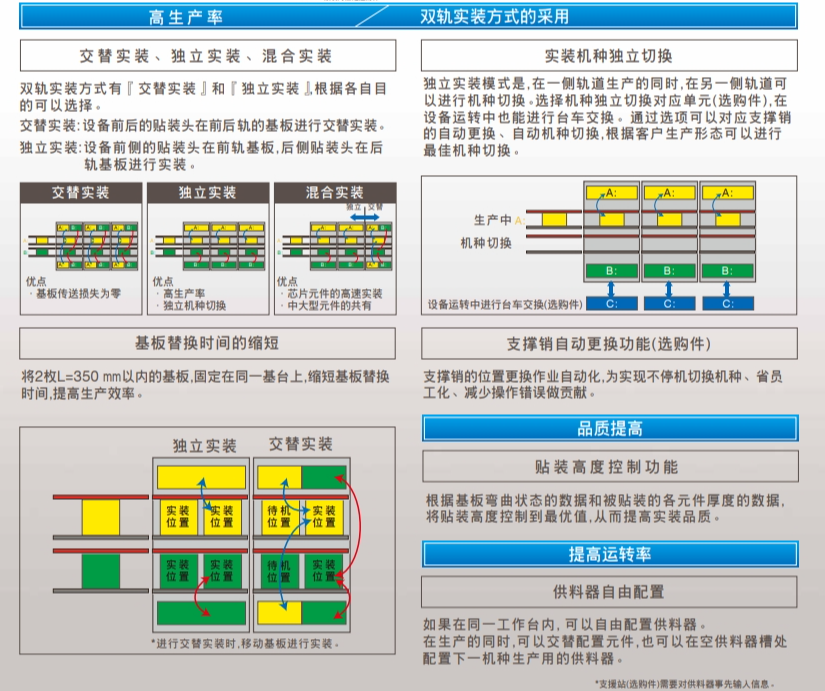

3. Dual-track mounting (select specifications) to achieve high productivity per unit area: According to the production substrate, you can choose the best mounting method among "independent mounting", "alternating mounting" and "hybrid mounting"
