characteristic:

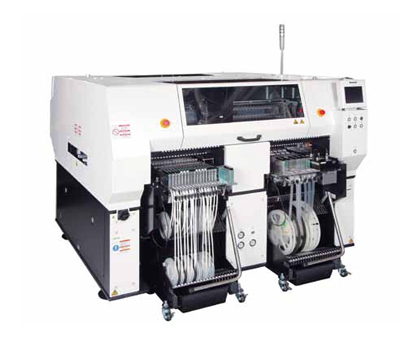

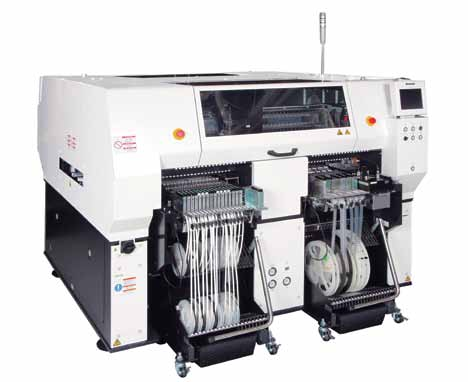

Panasonic's AM100 placement machine offers productivity and versatility equipped with a multifunctional 14-nozzle placement head. □14 mm*1 can be mounted at higher speeds*2. The device size is the same as that of BM221 (M size) and can be used on XL substrates. Program the data creation system (NPM-DGS). NPM-DGS is equipped with Panasert data conversion tool rack and CM/NPM universal rack supply unit*4 as standard. Number of installed models: Max. .160)

Technical Parameters:

Substrate size (mm): L50×W50～L510×W460

Mounting speed: 35800cph (0.1006s/chip), 12200cph (0.295s/QFP□12mm or less)

Mounting accuracy: ±40μm/chip, ±50μm/QFP 12mm or less, ±30μm/QFP 12mm～32mm

Component size (mm): 0402 chip*3～L120×W90 or L150×W25 (T=28*4)

Substrate replacement time: about 4.0s (when there are no mounted components on the back)

Power supply: three-phase AC200/220V±10V, AC380/400/420/480V±20V2.0kVA

Air pressure source: Min.0.5MPa～Max.0.8MPa, 200L/min (ANR)

Equipment size (mm): W1970×D2019*5×H1500*6

Weight*4: 2650kg
